How To Calculate Numerical Aperture

How To Calculate Numerical Aperture. You can use this calculator to identify the numerical aperture and the acceptance angle of any glass combination. This is section 2.1 of the imaging resource guide.

Optics Formulas from www.newport.com

Why can color cameras use lower resolution lenses than monochrome cameras? Numerical aperture is abbreviated as na and shows the efficiency with which light is collected inside the fiber in order to get propagated. Two calculators that uses the above formulas are presented below.

Source: sevenlostz.blogspot.com

This is section 2.1 of the imaging resource guide. R = 0.61 * λ/n.a.

Source: en.optipedia.info

Therefore, if your result is 0, you have reversed the values. In microscopy numerical aperture is the ability of an objective lens to collect and accept incoming light condensed into a cone of light from the condenser.

Source: www.slideshare.net

Will be able to resolve smaller features, resulting in a sharper image. Therefore, a lens with a larger n.a.

Source: calculator.academy

By incorporating index of refraction in its definition, na has the property that it is constant for a beam as it goes from one material to another provided there is no optical power at the interface. Or, more precisely, it is the sine of the half angle of the cone of rays coming into the focus.

Source: www.chegg.com

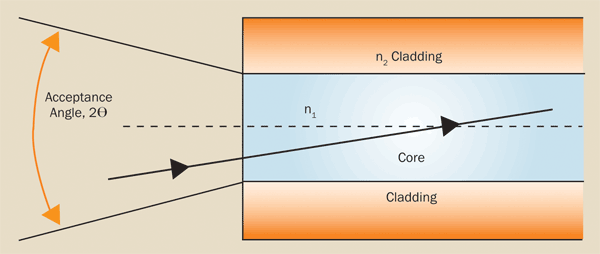

In fiber optics, it describes the angles range where light is occurring on the fiber optic will be broadcasted along with it. In microscopy numerical aperture is the ability of an objective lens to collect and accept incoming light condensed into a cone of light from the condenser.

Source: www.problemsphysics.com

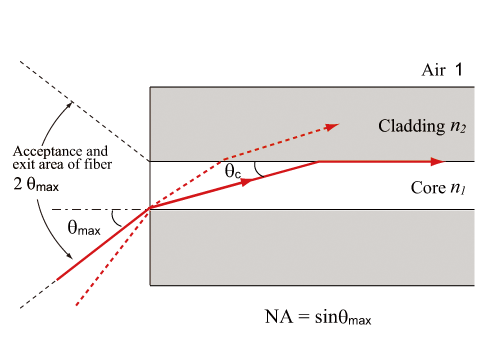

Calculate the numerical aperture, acceptance angle, and corresponding solid angle of optical fiber. Numerical aperture (na) = n(sin m).

Source: www.newport.com

General optics, fiber optics and waveguides. It is the maximum angle made by the light ray with the.

Source: www.scribd.com

Where λ is the imaging wavelength of light, nacon is the condenser numerical aperture, and naobj equals the objective numerical aperture. Why can color cameras use lower resolution lenses than monochrome cameras?

Source: www.newport.com

Written 6.2 years ago by teamques10 ★ In fiber optics, it describes the angles range where light is occurring on the fiber optic will be broadcasted along with it.

Source: www.ques10.com

Numerical aperture of a fiber optic page is a free tool enabling online optical calculations this calc converts between them, and also gives the angle. In the tutorial, the numerical aperture slider is utilized to control how image structure evolves as the objective numerical aperture is increased.

Source: www.slideserve.com

By incorporating index of refraction in its definition, na has the property that it is constant for a beam as it goes from one material to another provided there is no optical power at the interface. This is a number that expresses the ability of a lens to resolve fine detail in an object being observed.

Source: www.researchgate.net

The factor 1.22 has been taken from the calculation for the case illustrated in figure 4 for the close approach of two airy disks where the intensity profiles have been superimposed. Na is the light gathering ability or capacity of an optical fiber.

Compute The Numerical Aperture (Na) Of The Optical Fibre By Using The Formula Na = Sinθ=W/ (4L2+W2)1/2, Where Θ Is Called As The Acceptance Angle Is The Maximum Angle Of Incidence At The Input End Of The Optical Fibre So That He Optical Ray Can.

By incorporating index of refraction in its definition, na has the property that it is constant for a beam as it goes from one material to another provided there is no optical power at the interface. It is derived by a mathematical formula ( n sine u) and is related to the angular aperture of the lens and the index of refraction of the medium found between the lens and the specimen. Fundamentally, f/# is the ratio of the focal length, (f) ( f) , of the lens.

The Factor 1.22 Has Been Taken From The Calculation For The Case Illustrated In Figure 4 For The Close Approach Of Two Airy Disks Where The Intensity Profiles Have Been Superimposed.

Will be able to resolve smaller features, resulting in a sharper image. Therefore, a lens with a larger n.a. It is also known as figure of merit.

If The Aperture Angle Is Very Large, A Strong Distortion Of The Optics Must Usually Be Expected.

87) where n ( r) is the index profile (typically quadratic). The numerical aperture of a microscope objective is a measure of its ability to gather light and resolve fine specimen detail at a fixed object distance. The numerical aperture (na) is the most important factor in defining the performance characteristics of an objective lens as shown in eq.

System Throughput, F/#, And Numerical Aperture.

In optics, the numerical aperture (na) of an optical system is a dimensionless number that characterizes the range of angles over which the system can accept or emit light. Therefore the object field to be viewed can be increased or reduced by increasing or reducing the working distance. N1 is always larger than n2.

Numerical Aperture Is Defined By The Formula N.a.

In the tutorial, the numerical aperture slider is utilized to control how image structure evolves as the objective numerical aperture is increased. What is the application of the numerical aperture of optical fiber? The image resolution, (d) is defined by the equation:
